Mobile Drying

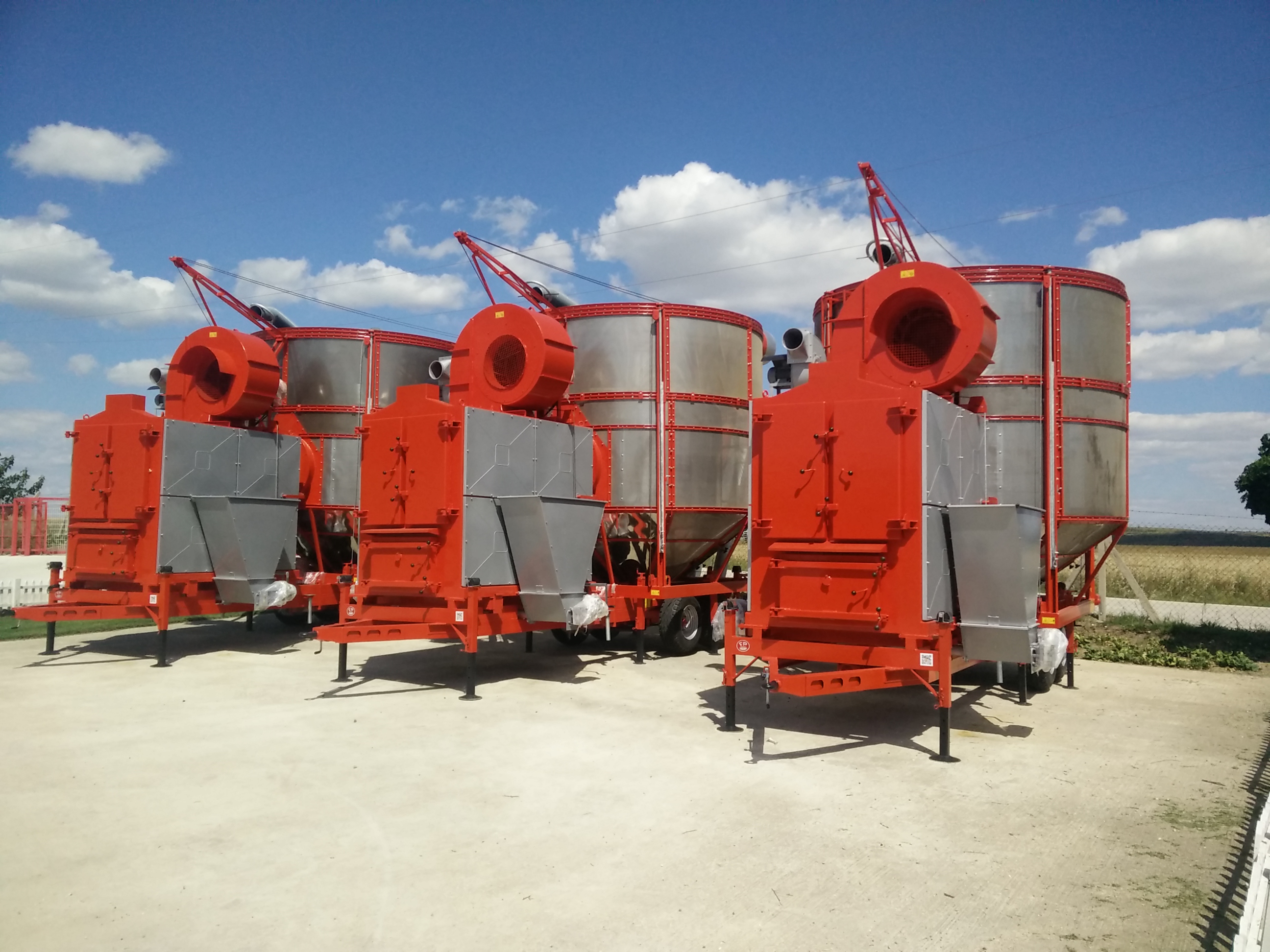

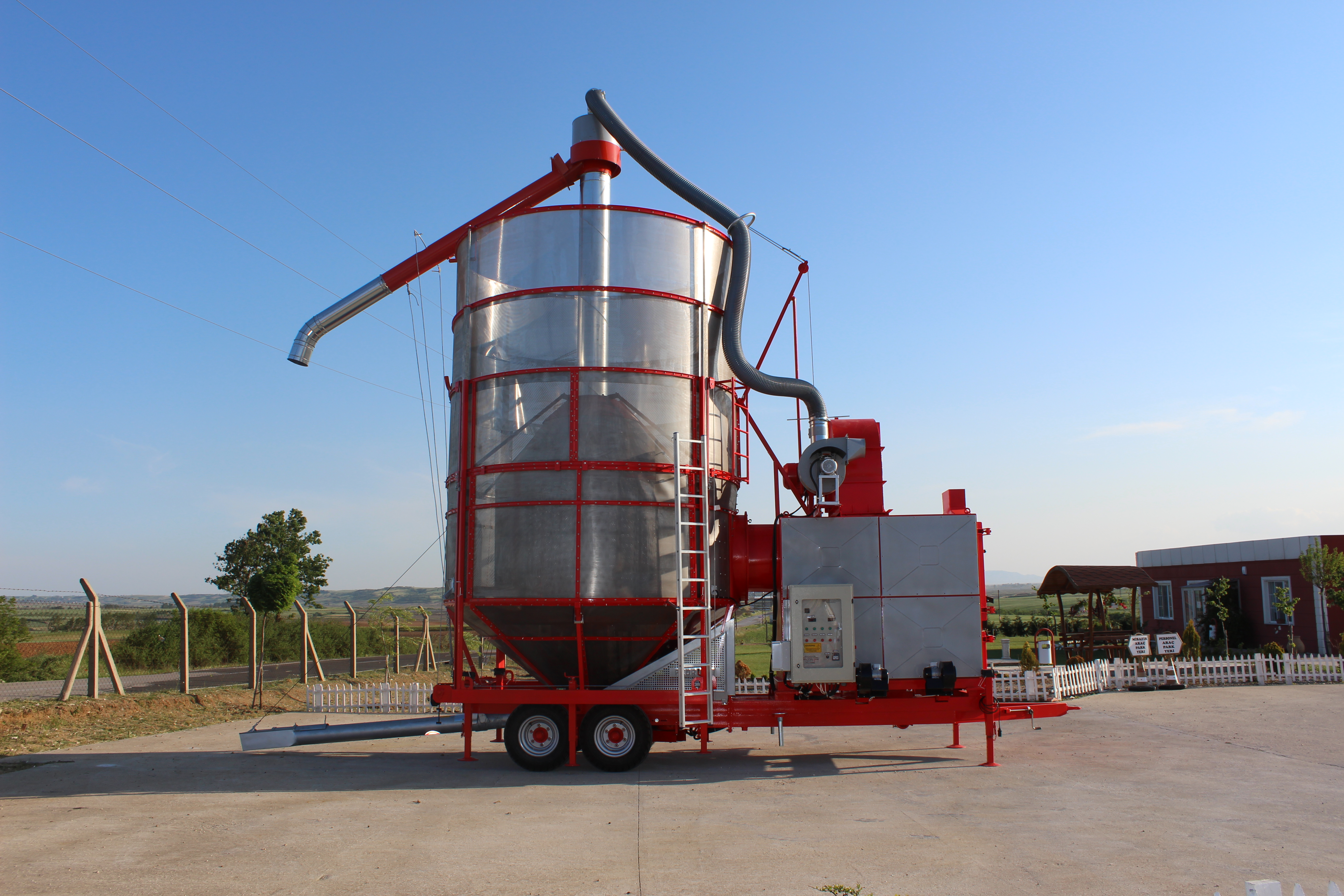

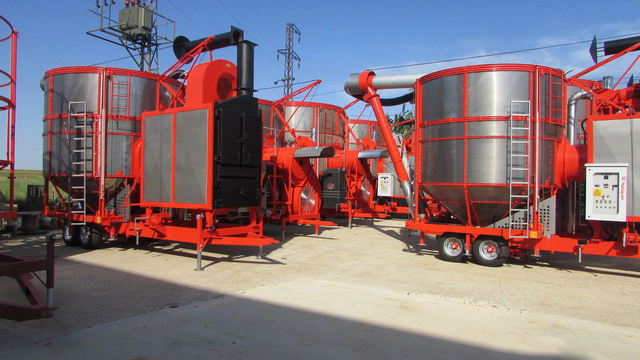

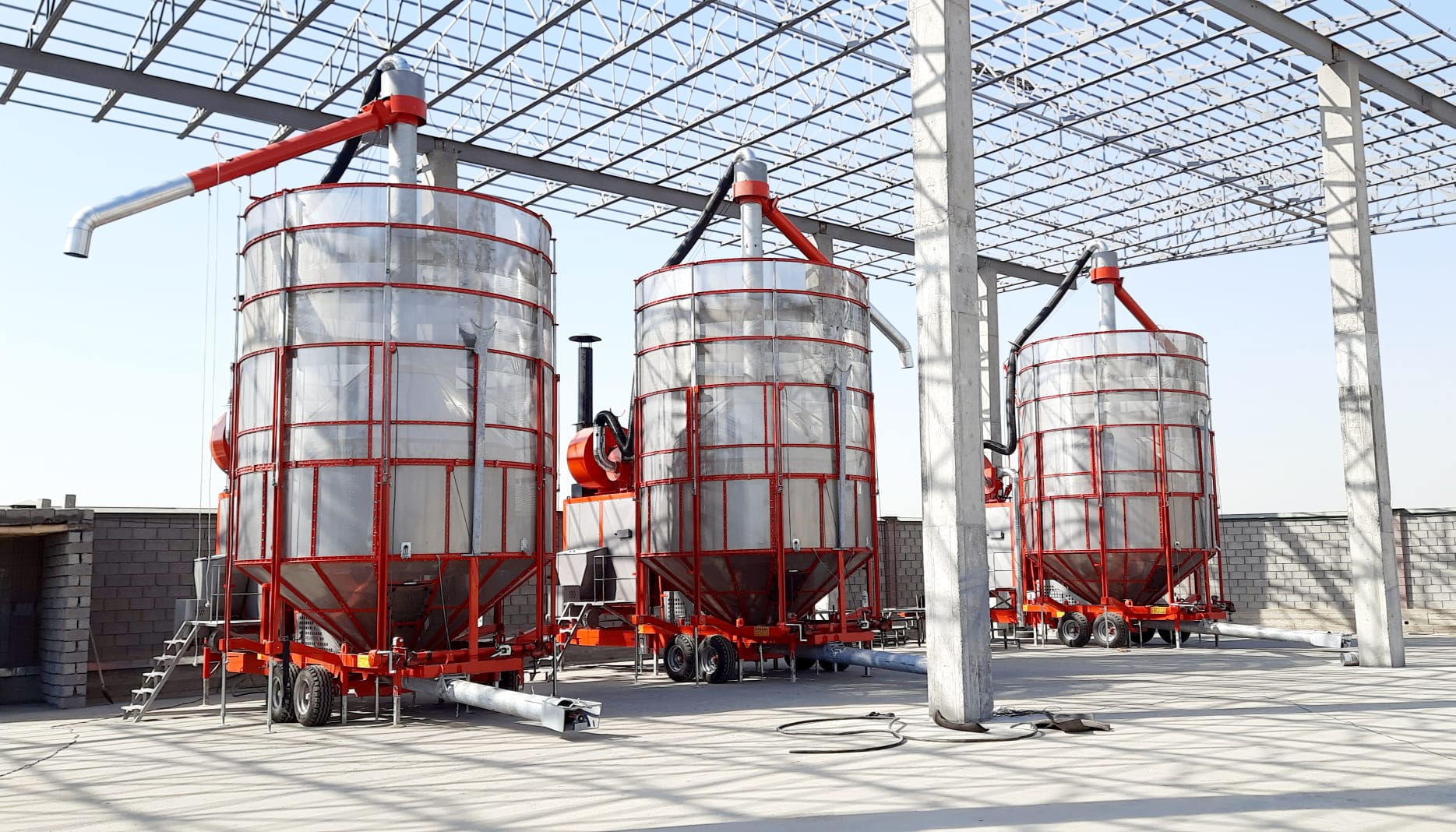

Our two types of dryers (Large240 and XLM380) are powerful and reliable models capable of delivering daily production ranging from 85 to 250 tons, depending on the product to be dried.
They can be equipped with three different types of burners.
Biomass (coal, pellet, or rice husk)
Diesel
Gas
These dryers are recommended for medium and upper-medium scale businesses that want to perform drying directly and maintain control over product quality.

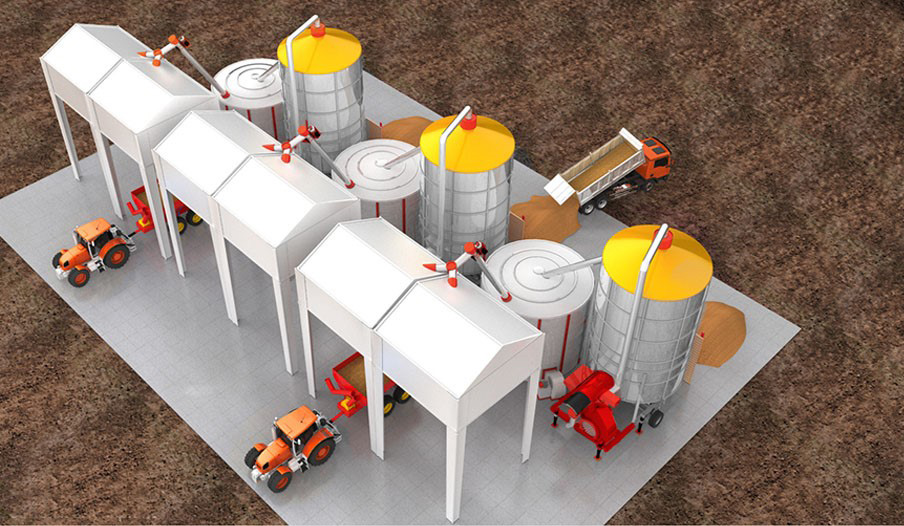

Additionally, when both models are equipped with automatic functions, they can be integrated into continuous drying cycles, enabling modern farms to optimize their production processes.
All models are equipped with a fan and a high-performance burner, ensuring optimal performance with features like fast loading and unloading.
The models currently available in the product range remain the best-selling and most admired ones, perfectly representing the production philosophy of drying: power and efficiency, robustness and durability, balance and safety.
| SUPER 120 (Gas or Diesel) | LARGE 240 (Multi-Fuel) | XLM380 (Multi-Fuel) | |
|---|---|---|---|
| Capacity m³ | 17 m³ | 34 m³ | 56 m³ |
| Corn Capacity m³ | 12 | 24 | 38 |
| Rice Capacity m³ | 9.5 m³ | 19 m³ | 31 m³ |
| Average Daily (Corn %20-%14) | 81 m³ / 24 hours | 145 m³ / 24 hours | 225 m³ / 24 hours |
| Average Daily (Rice %20-%14) | 45 m³ / 24 hours | 91 m³ / 24 hours | 150 m³ / 24 hours |
| Dimensions in Transport (LxWxH) | 5.05 x 2.5 x 4.1 | 9.16 x 3.34 x 4.83 (Bio Fuel) | 10.46 x 4.04 x 5.4 (Bio Fuel) |
| Dimensions in Operation (LxWxH) | 7.7 x 2.5 x 6.5 | 9.61 x 3.34 x 7.93 (Bio Fuel) | 11.28 x 4.04 x 9.2 (Bio Fuel) |
| Total Motor Power | 34.95 kW (Gas or Diesel) | 40.69 kW (Bio Fuel) | 54.69 kW (Bio Fuel) |
| Weight | 3800 kg | 6700 kg | 9500 kg |
| Average Coal Consumption | 15 - 25 kg / hour | 35 - 45 kg / hour | 15 - 25 kg / hour |
| Average Diesel Consumption | 10 - 12 L / hour | 18 - 22 L / hour | 28 - 31 L / hour |
| Average Husk Consumption | 100 - 120 kg / hour | 130 - 150 kg / hour | 150 - 170 kg / hour |
| Average LPG Consumption | 12 - 14 kg / hour | 20 - 25 kg / hour | 33 - 38 kg / hour |
| Perforated Sieves | 2.5 mm 430 inox | 2.5 mm 430 inox | 2.5 mm 430 inox |
