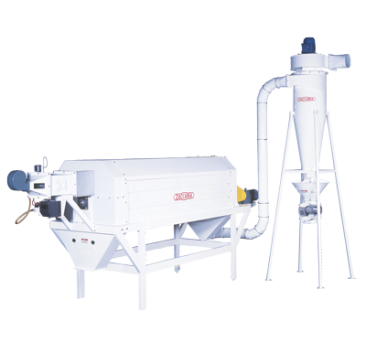

SRCZ-1: ROTARY CONTİNUOUS DRYER FOR CEREALS

Designed for drying the maize germ in the semi-humid degermination process. The drying process is done by hot air stream in counter-flow through the product. In this system, the germ is discharged into the rotary chamber where it remains in agitation for some few minutes for proper drying. Germ drying capacity (kg / h): 500 to 1.500 Power consumption of burner fan: 1 hp / 0,75 kW / II poles Power consumption of the cyclone fan: 4 hp / 3 kW / II poles Power consumption of the dryer: 2 hp / 1,5 kW / IV poles Power consumption of the rotative valve: 0,75 hp / 0,55 kW / IV poles
